Nonparametric regression

Data Mining - CdL CLAMSES

Tommaso Rigon

Università degli Studi di Milano-Bicocca

Homepage

“Nonparametric regression might, like linear regression, become an object treasured both for its artistic merit as well as usefulness.”

Leo Breiman

  • This unit will cover the following topics:

    • Kernel methods and local regression;
    • Regression splines;
    • Smoothing splines.

  • Let us consider again the relationship between a response variable Y_i and a set of covariates \bm{x}_i: Y_i = f(\bm{x}_i) + \epsilon_i, \qquad where \epsilon_i are iid with \mathbb{E}(\epsilon_i) = 0 and \text{var}(\epsilon_i) = \sigma^2.

  • We do not believe f(\bm{x}) is a polynomial nor it belongs to some parametric family of functions.

  • Can we fit a nonparametric relationship that does not make strong assumptions on f(\bm{x})? Let us review some old datasets…

Motivating applications

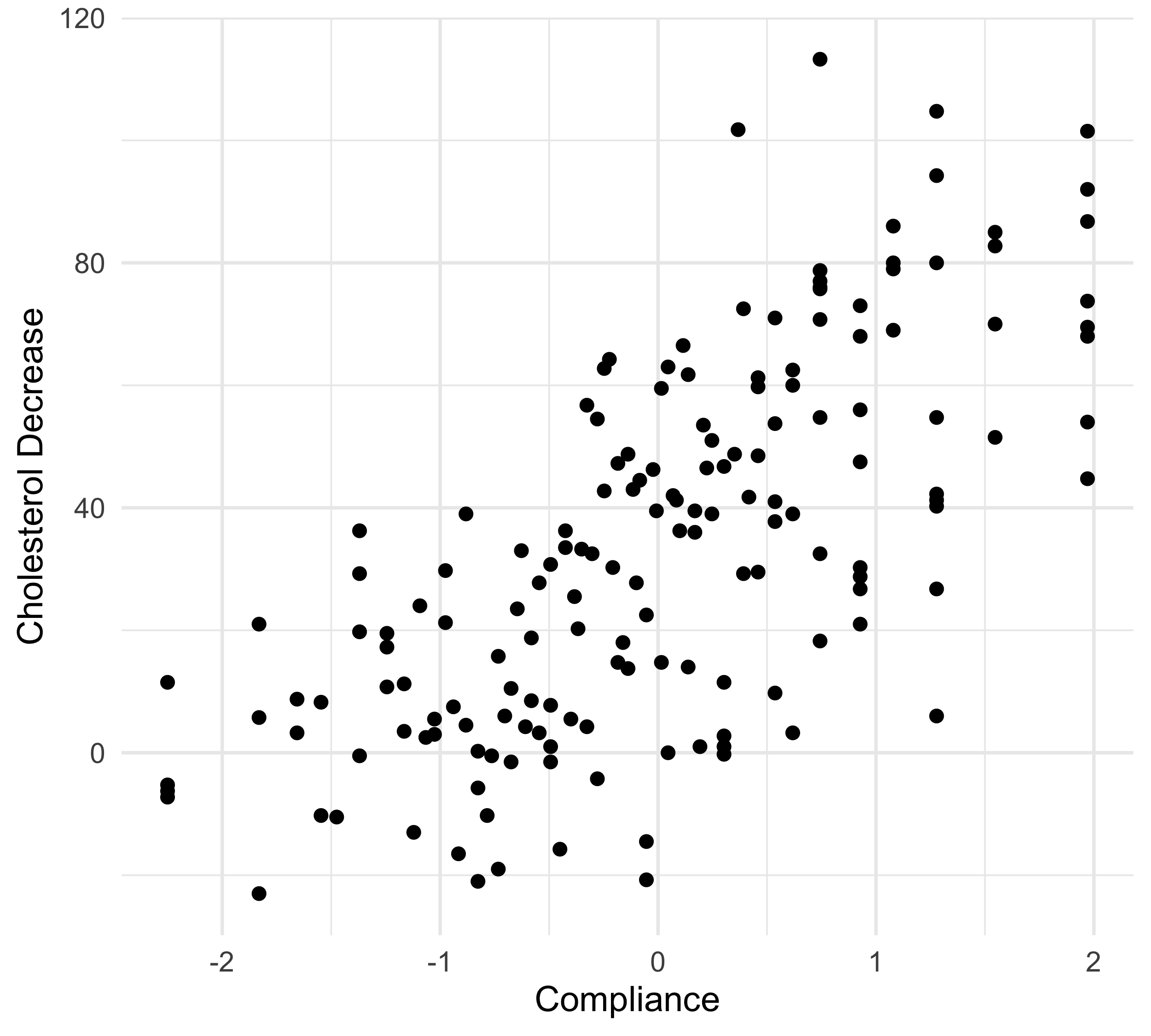

The cholesterol data

  • In this first example, a drug called “cholestyramine” is administered to n = 164 men.

  • We observe the pair (x_i, y_i) for each man.

  • The response y_i is the decrease in cholesterol level over the experiment.

  • The covariate x_i is a measure of compliance.

  • We assume, as before, that the data are generated according to Y_i = f(x_i) + \epsilon_i, \quad i=1,\dots,n.

  • In Unit B we fit a polynomial with degree 3 on this data, although there was some uncertainty.

The auto dataset

  • In Unit A we considered the auto dataset.

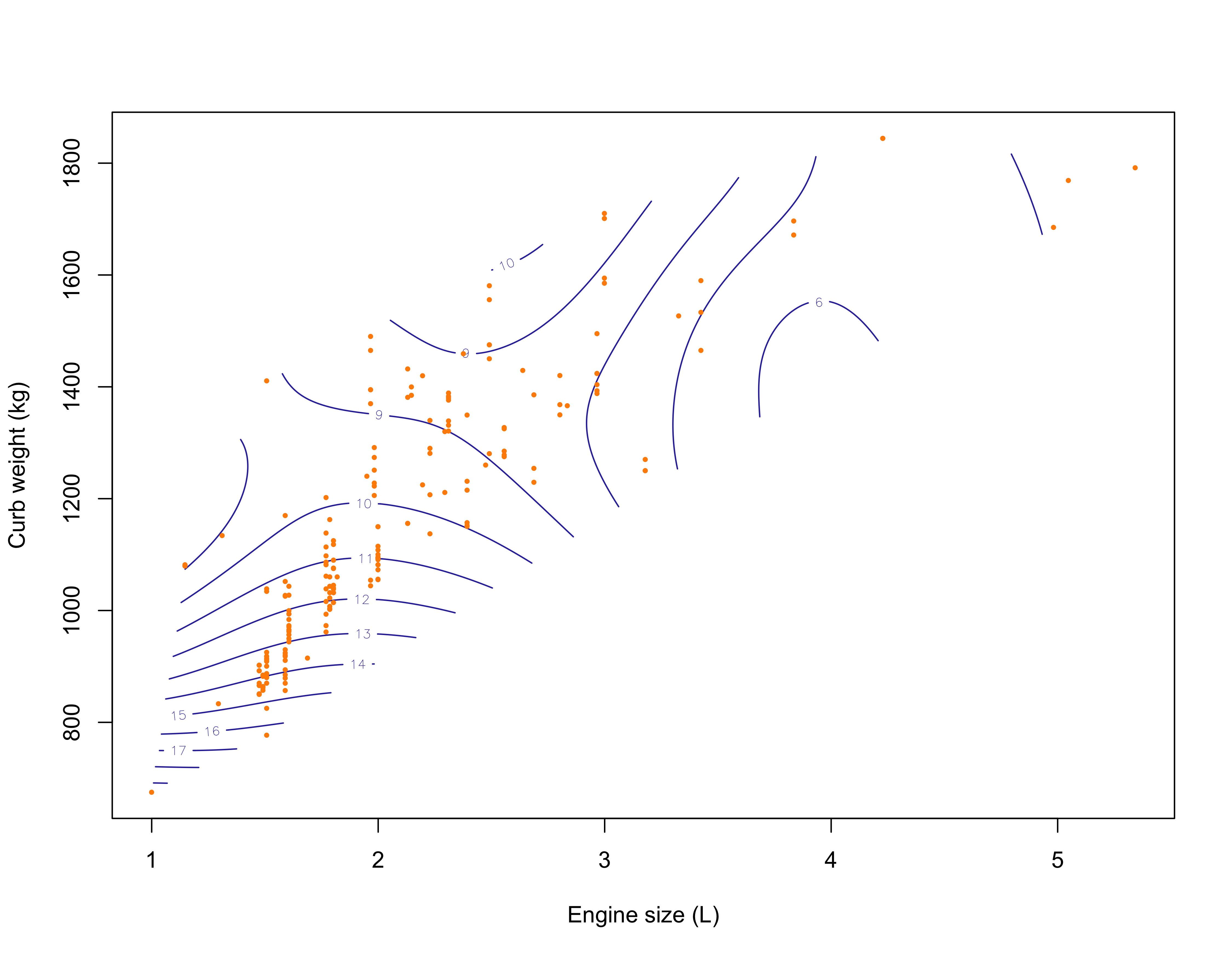

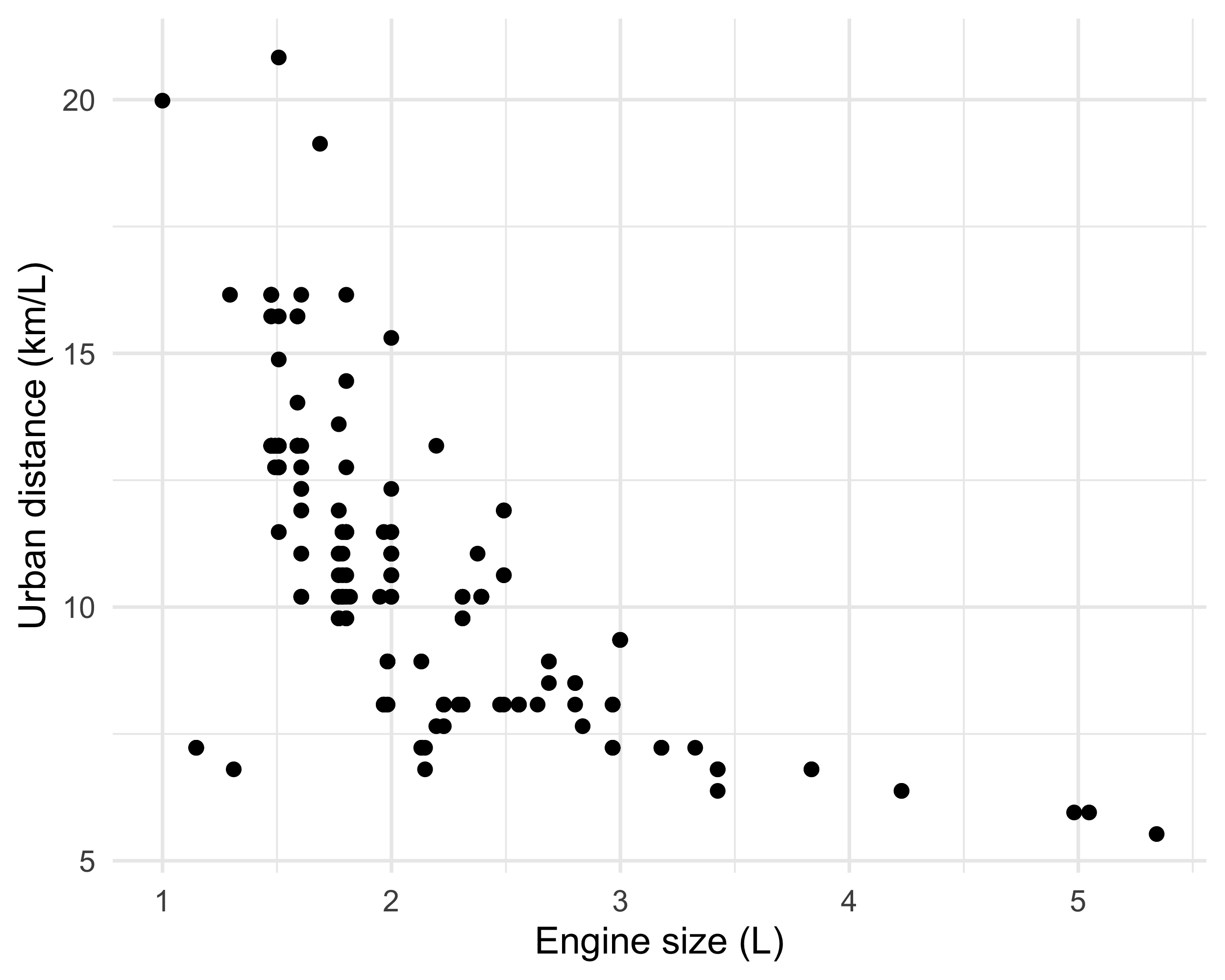

  • We wanted to model the relationship between city.distance (y) and engine.size (x).

  • The chosen model involved a non-linear function Y_i = f(x_i) + \epsilon_i, \qquad i=1,\dots,n, where f(x) was “manually” selected.

  • There are no reasons to believe that f(x) = \alpha x^\beta or that f(x) belongs to any other parametric family.

  • We would like the data to “speak for themselves.”

The mcycle dataset

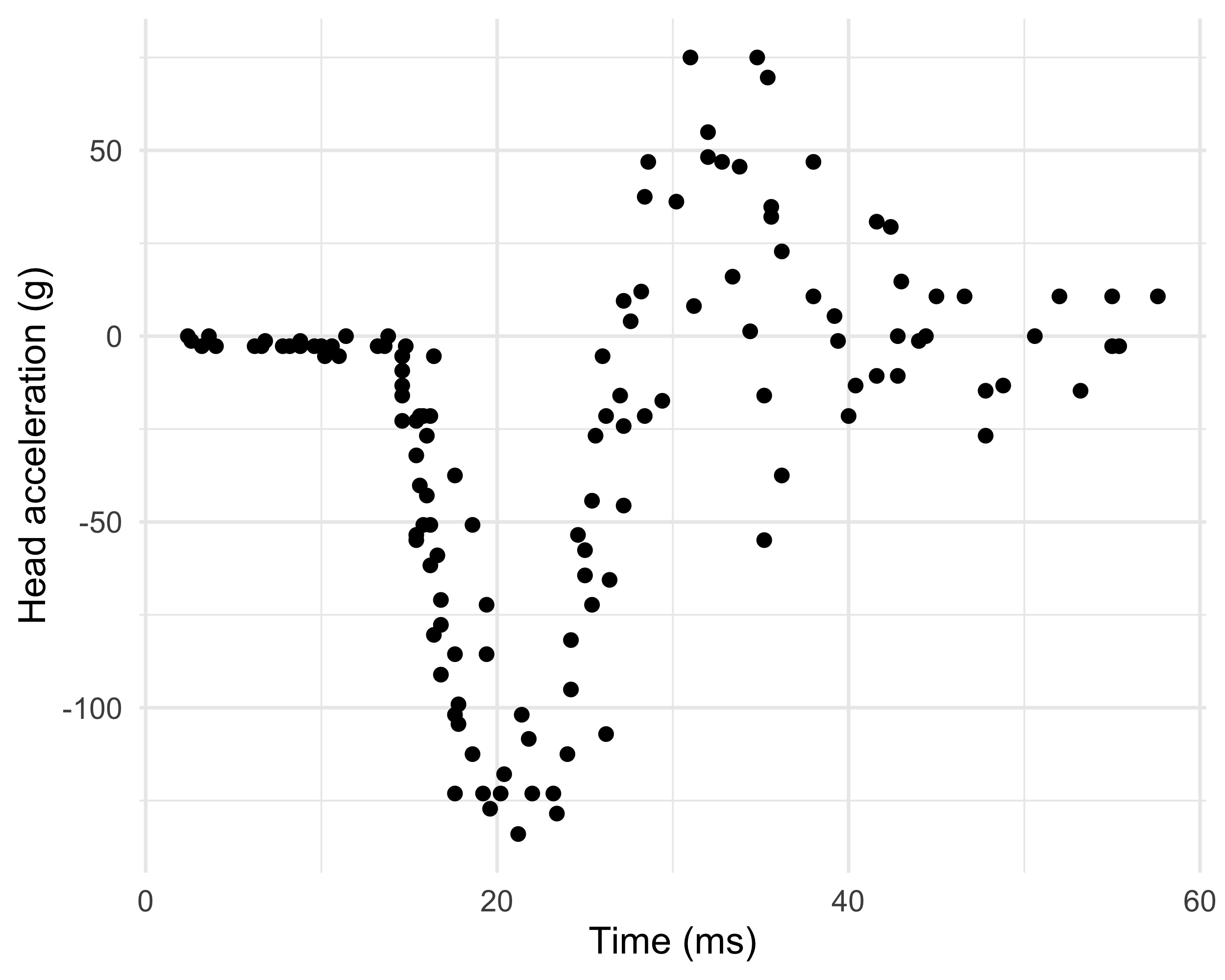

  • Data consist of variables y accelerometer (accel) readings, taken through time x (times).

  • The n = 133 observations were measured during a simulated motor-cycle crash experiment, for testing the efficacy of crash helmets.

  • Some characteristics of the data:

    • The time points are not regularly spaced and sometimes there are multiple observations;
    • The observations are subject to error;
    • The errors \epsilon_i are probably heteroscedastic, but let us ignore this now.

  • It is of interest to discern the general shape of the underlying acceleration curve.

Old friends: polynomials

  • In the mcycle dataset, it is not obvious which parametric function we should consider, therefore this route is not an option.

  • In theory polynomials can approximate a large class of functions, as a consequence of Taylor’s expansion theorem.

  • In the statistical practice, however, polynomial regression is not very well suited for modeling complex relationships.

  • When performing flexible regression, we expect the prediction at x_i to depend on observations close to x_i. However, polynomials are not local.

  • Instead, in polynomial regression points that are far away from x_i have a big impact on \hat{f}(x_i). This produces spurious oscillations at the boundaries and unstable estimates.

  • This is known as Runge’s phenomenon in numerical analysis.

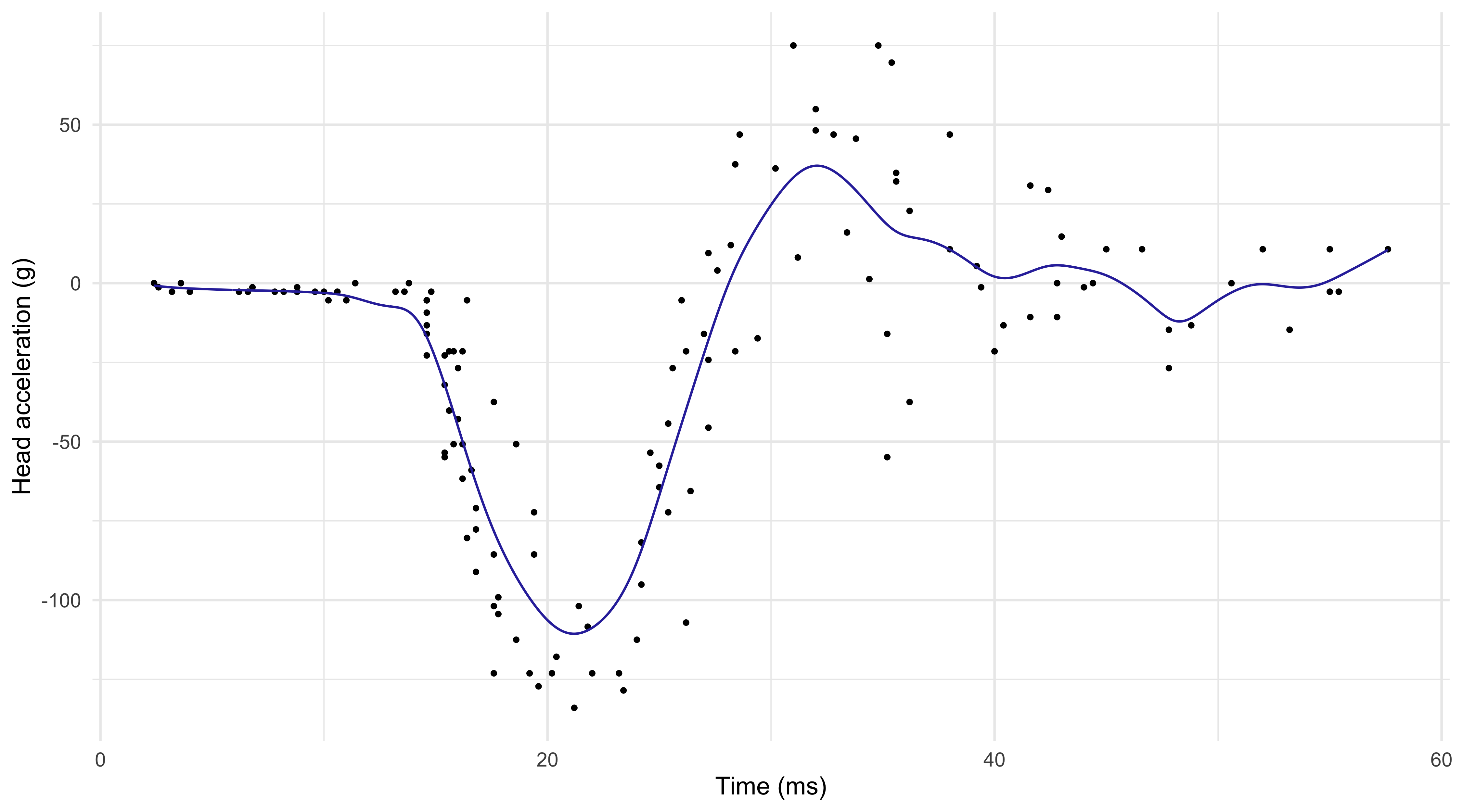

Old friends: polynomials (mcycle data)

Local regression

The regression function

  • The only assumption we are making in this Unit is the following additive structure Y_i = f(x_i) + \epsilon_i, \qquad i=1,\dots,n, where \epsilon_i are iid with \mathbb{E}(\epsilon_i) = 0 and \text{var}(\epsilon_i) = \sigma^2. This structure can be relaxed even further.

  • Let \tilde{Y}_i be a new data point. In Unit B we showed that under the quadratic loss \mathbb{E}\left[\{\tilde{Y}_i - \hat{f}(x_i)\}^2\right], the best prediction \hat{f}(x_i), i.e. the one minimizing the loss, coincides with \hat{f}(x_i) = \mathbb{E}(\tilde{Y}_i) = f(x_i), which is the conditional expectation of Y_i given the value x_i, called regression function.

  • The regression function f(x_i) = \mathbb{E}(\tilde{Y}_i) is the optimal prediction even in presence of heteroschedastic data or when the above additive decomposition does not hold.

Local estimates of the prediction

  • We do not know f(x), but the previous formulas suggest that we could consider an arithmetic average of the data points.

  • Hence, a prediction for a generic value x could be obtained as follows: \hat{f}(x) = \frac{1}{n_x}\sum_{i : x_i = x} y_i, \qquad n_x = \sum_{i=1}^n I(x_i = x).

  • This idea, unfortunately, does not work in most practical cases.

  • Indeed, in a typical dataset it is very unlikely that there exist multiple observations exactly equal to x among the points (x_i, y_i).

  • Even if there were values such that x_i = x, the sample size n_x would be so small (e.g. n_x = 1) that the variance of \hat{f}(x) would be extremely high, making this estimator useless.

  • However, this “local average” idea seems intuitively appealing. Can we “fix” it?

K-nearest neighbours

  • Instead of considering the values exactly equal to x, we could identify the pairs (x_i, y_i) that are close to (i.e. in a neighbour of) x.

  • A natural measure of proximity between x and the data points x_i is the Euclidean distance |x_i - x|, but in principle any other metric could be used.

  • We consider an average of the k values y_i whose x_i are nearest to x, that is: \hat{f}(x) = \frac{1}{|\mathcal{N}_x|}\sum_{i \in \mathcal{N}_x} y_i, where \mathcal{N}_x is indeed the set of k points nearest to x in Euclidean distance.

  • This method is called k-nearest neighbours (KNN).

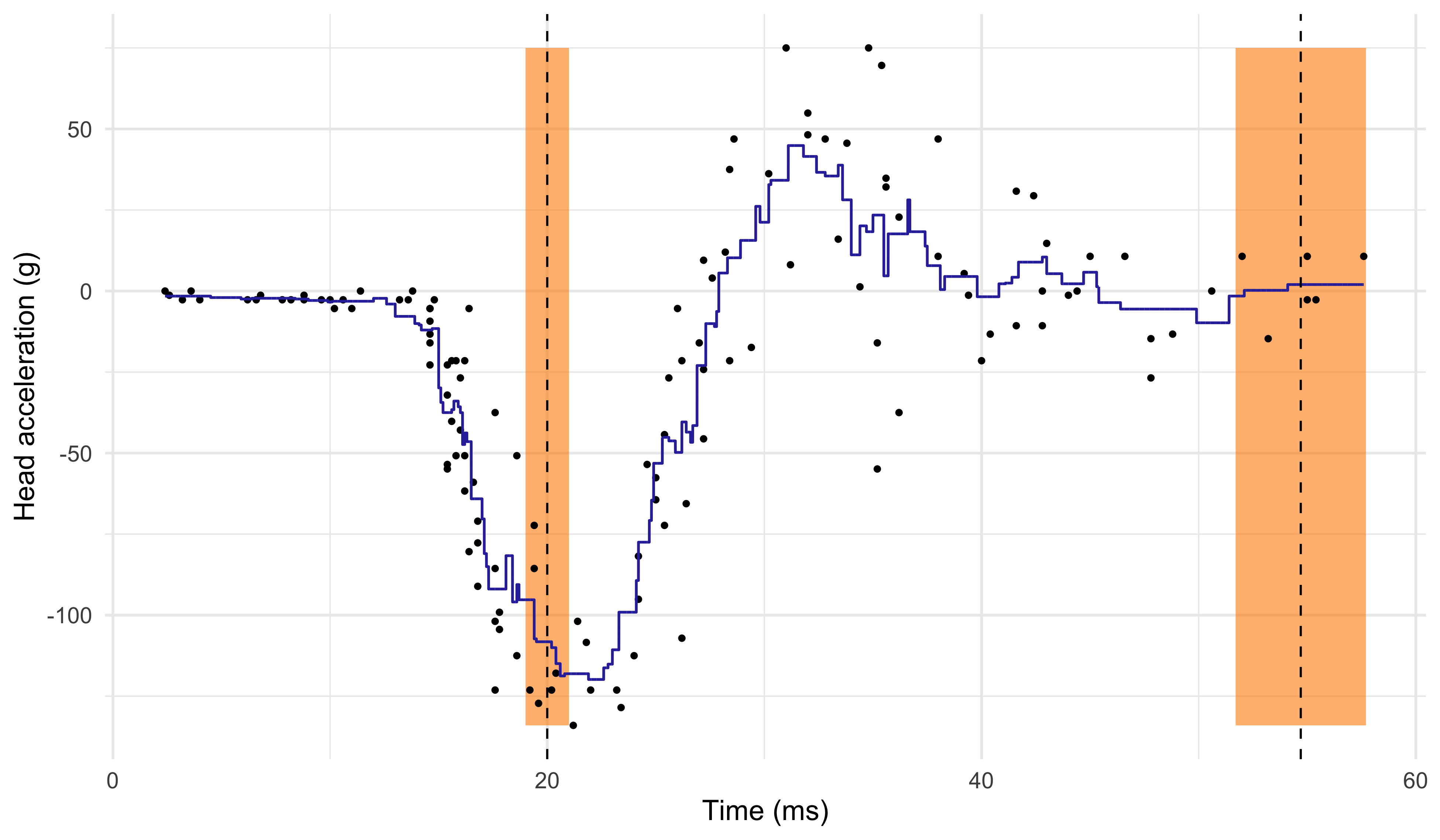

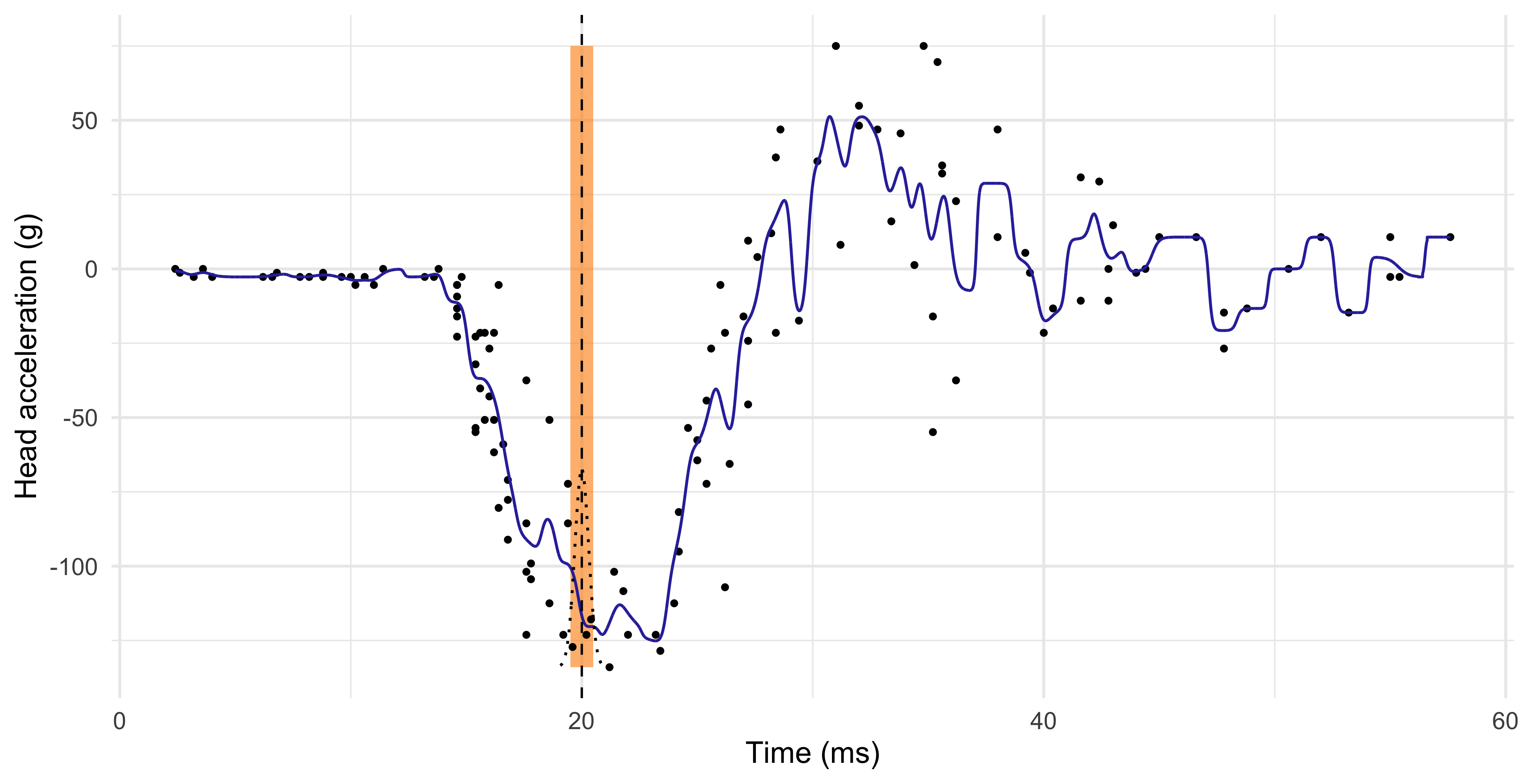

K-nearest neighbours (k = 6)

Comments and limitations about the KNN method

  • The number of neighbours k influences how “local” is the estimate.

  • When k is low, the KNN estimator \hat{f}(x) has high variance. The extreme case k = 1 corresponds to an “average” of a single data point.

  • When k is high, the KNN estimator \hat{f}(x) is not local and it has high bias. The extreme case k = n produces a constant, i.e., the average of all the observations.

  • Thus, there is a bias-variance trade-off in the choice of k, which should be selected, e.g., via cross-validation.

  • The k-nearest neighbors produce a sensible result, but the method can be improved.

  • The blue curve is bumpy, because \hat{f}(x) is discontinuous in x.

  • Indeed, as we move x from left to right, the k-nearest neighborhood remains constant until a new point x_i to the right of x is included, and one to the left is excluded.

  • This discontinuity is ugly and unnecessary. We are looking instead for a smooth prediction.

Nadaraya-Watson estimator

  • The Nadaraya-Watson estimator addresses the aforementioned issues of the KNN method. It is a weighted average \hat{f}(x) = \frac{1}{\sum_{i'=1}^n w_{i'}(x)}\sum_{i=1}^n w_i(x) y_i = \sum_{i=1}^n s_i(x) y_i, where s_i(x) = w_i(x) / \sum_{i'=1}^n w_{i'}(x) are the normalized weights.
  • The values w_i(x) \ge 0 are chosen so that the points x_i close to x are weighted more.

  • A convenient way of selecting these weights is through kernel functions: w_i(x) = \frac{1}{h}w\left(\frac{x_i - x}{h}\right), \qquad i=1,\dots,n, where w(\cdot) is a density function, symmetric around the origin, called kernel in this context.

  • The value h > 0 is a scale factor, sometimes called bandwidth or smoothing parameter.

Nadaraya-Watson estimator: comments

  • The fitted function \hat{f}(x) is continuous and is obtained by computing several weighted averages, one for each value of x.

  • A popular kernel is the Gaussian kernel, that is: w_i(x) = \frac{1}{h} \phi\left(\frac{x_i - x}{h}\right), \qquad i=1,\dots,n, therefore h^2 represents the variance. We will discuss alternative choices later on.

  • The most important factor, however, is not the functional form of w(\cdot), but rather the smoothing parameter h, which is a complexity parameter.

  • Indeed, h defines the “smoothing window” on the x-axis, i.e. the relevant data points that are considered for \hat{f}(x).

  • As with any complexity parameter, h should be chosen via cross-validation or related ideas.

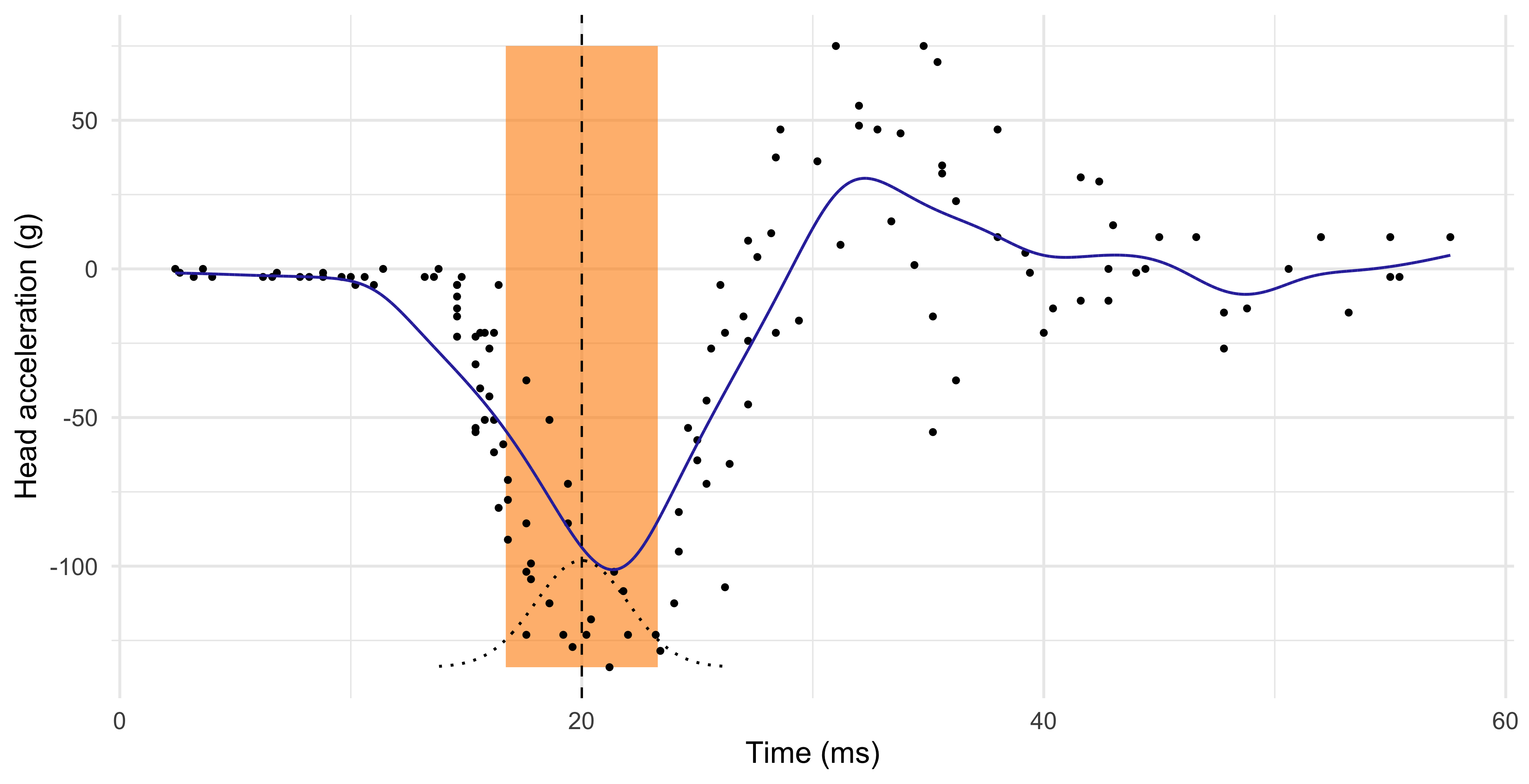

Nadaraya-Watson (Gaussian kernel)

Local linear regression I

  • Local linear regression is a refinement of the Nadaraya-Watson estimator that has typically lower bias, especially at the boundaries, without noticeable increases in variance.

  • If f(x) is differentiable, then it can be approximated with a linear function tangent in x_0: f(x) = \underbrace{f(x_0)}_{\beta_1} + \underbrace{f'(x_0)}_{\beta_2}(x - x_0) + \text{rest}.

  • Hence, instead of computing a local average (\beta_2 = 0), we consider a local linear model. In other words, for every x we seek the coefficients solving: \hat{\beta}(x) = \left(\hat{\beta}_1(x), \hat{\beta}_2(x)\right) = \arg\min_{(\beta_1, \beta_2)} \sum_{i=1}^n \textcolor{darkblue}{w_i(x)}\left\{y_i - \beta_1 - \textcolor{red}{\beta_2(x_i - x)}\right\}^2.

  • Once the parameter \hat{\beta}_1(x) and \hat{\beta}_2(x) are obtained, the local linear regression estimator is \hat{f}(x) = \hat{\beta}_1(x) + \hat{\beta}_2(x) (x - x) = \hat{\beta}_1(x).

Local linear regression II

  • The local linear regression, as we have seen in Unit A, has an explicit solution: \hat{\beta}(x) = (\bm{X}_x^T\bm{W}_x\bm{X}_x)^{-1}\bm{X}_x^T\bm{W}_x\bm{y}, where the rows of \bm{X}_x are \bm{x}_{i,x} = (1, x_i - x) and \bm{W}_x = \text{diag}\{w_1(x),\dots,w_n(x)\}.

  • In practice, we do not need to solve this linear algebra problem. An even more explicit and non-iterative solution can be found (see Exercises).

Theorem (Local linear smoothing)

The local linear regression smoother, evaluated in x, admits an explicit expression: \hat{f}(x) = \frac{1}{n}\sum_{i=1}^n \frac{w_i(x) \{a_2(x) - (x_i - x) a_1(x)\}}{a_2(x)a_0(x) - a_1(x)^2 } y_i = \sum_{i=1}^n s_i(x) y_i, where a_j(x) = n^{-1}\sum_{i=1}^n w_i(x) (x_i - x)^j, for j=0,1,2.

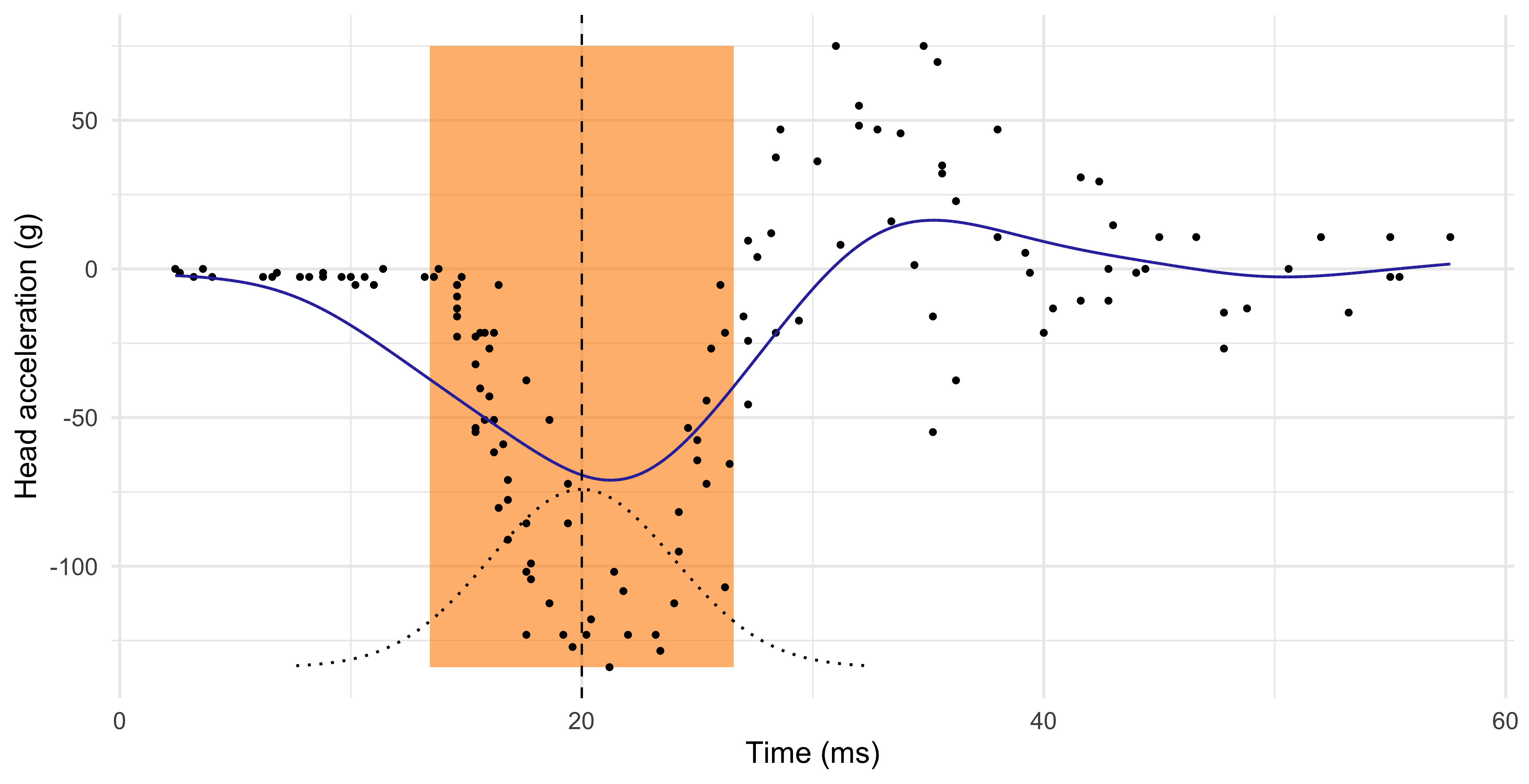

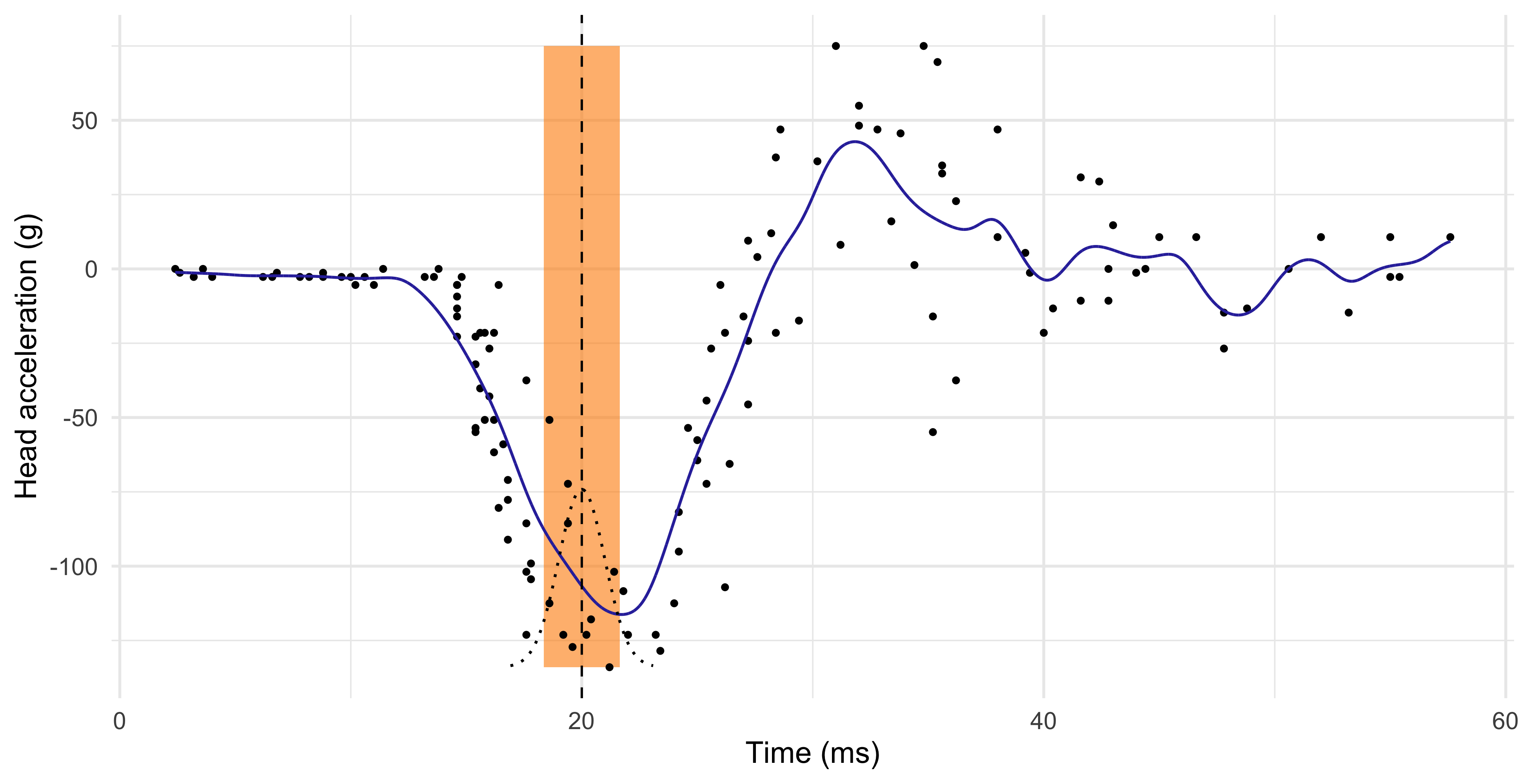

Local linear regression (h = 1.46, Gaussian kernel)

Linear smoothers I

  • The Nadaraya-Watson estimator and local linear regression are special instances of linear smoothers, which are estimators having the following form: \hat{f}(x) = \sum_{i=1}^ns_i(x) y_i.

  • We will study other members of this class, such as regression and smoothing splines.

  • Polynomial regression, ridge regression, Gaussian processes and moving averages are also linear smoothers.

  • The mean (and hence the bias), and the variance of a linear smoother can be easily obtained: \mathbb{E}\{\hat{f}(x)\} = \sum_{i=1}^n s_i(x)f(x_i), \qquad \text{var}\{\hat{f}(x)\} = \sigma^2\sum_{i=1}^ns_i(x)^2.

Linear smoothers II

  • In linear smoothers, we can express the predicted values \hat{\bm{y}} using matrix notation \hat{\bm{y}} = \sum_{i=1}^n\bm{s}_i y_i = \bm{S}\bm{y}, \qquad \bm{s}_i = (s_i(x_1), \dots, s_i(x_n))^T, where \bm{S} = (\bm{s}_1,\dots,\bm{s}_n)^T is the so-called n \times n smoothing matrix.
  • Each row of the smoothing matrix \bm{s}_i is called equivalent kernel for estimating \hat{f}(x_i); in the Nadaraya Watson estimator \bm{s}_i is indeed a normalized kernel.

  • The weights of all the smoothers we will use are such that \sum_{i=1}^ns_i(x) = 1 for all x.

  • Hence, the smoother preserves constant curves, namely if all y_i = c, then \hat{f}(x) = c.

On the choice of the kernel

  • As mentioned before, the choice of the kernel is not crucial. Some alternatives are:
Kernel w(x) Support
Gaussian \frac{1}{\sqrt{2 \pi}}\exp{\left(-\frac{x^2}{2}\right)} \mathbb{R}
Rectangular \frac{1}{2} (-1, 1)
Epanechnikov \frac{3}{4}(1 - x^2) (-1, 1)
Bi-quadratic \frac{15}{16}(1 - x^2)^2 (-1, 1)
Tri-cubic \frac{70}{81}(1 - |x|^3)^3 (-1, 1)
  • Some asymptotic considerations lead to the choice of the “optimal” Epanechnikov kernel.

  • Bounded kernels have computational advantages, because one needs to compute averages of a limited number of data points.

  • On the other hand, bounded kernels may lead to discontinuous derivatives of \hat{f}(x) that could be unappealing in certain contexts.

Bias-variance tradeoff

Theorem (Fan and Gijbels, 1996, Theorem 3.1)

Let (X_i, Y_i) be iid random vectors with g(x) denoting the marginal density of X_i. The conditional law is such that Y_i = f(X_i) + \epsilon_i, with \epsilon_i iid and \mathbb{E}(\epsilon_i) = 0, \text{var}(\epsilon_i) = \sigma^2.

Moreover, suppose g(x) > 0 and that g(\cdot) and f''(\cdot) are continuous in a neighborhood of x. Then, as h \rightarrow 0 and n h \rightarrow \infty we have that for the local linear regression \hat{f}(x) the bias is \mathbb{E}\{\hat{f}(x) - f(x) \} \approx \frac{\textcolor{red}{h^2}}{2}\sigma^2_w f''(x), where \sigma^2_w = \int z^2 w(z)\mathrm{d}z. In addition, the variance is \text{var}\{\hat{f}(x)\} \approx \frac{\sigma^2}{\textcolor{darkblue}{n h}} \frac{\alpha_w}{g(x)}, where \alpha_w = \int w^2(z)\mathrm{d}z.

Bias-variance tradeoff II

  • The previous theorem shows that bias is of order h^2 and the variance is of order (1 / nh).

  • Once again, there is a trade-off because we would like h \rightarrow 0 but, at the same time, we need to keep the variance under control.

  • We can select h so that the asymptotic mean squared error is minimal. This leads to the following optimal choice for the bandwidth: h_\text{opt}(x) = \left(\frac{1}{n} \frac{\sigma^2 \alpha_w}{\sigma^4_w f''(x)^2 g(x)}\right)^{1/5}.

  • Unfortunately, h_\text{opt}(x) is of little practical utility, as it involves the unknown terms f''(x), g(x) and \sigma^2. However, it highlights two important facts:

  • The bandwidth h should decrease at the rate n^{-1/5}, i.e. quite slowly.

  • If we plug-in h_\text{opt}(x) into the bias/variance formulas, we get that the mean squared error tends to 0 at the rate n^{-4/5}, which is much slower than the parametric case n^{-1}.

Bias reduction of local linear regression

  • Compared to the Nadaraya-Watson estimator, local linear regression corrects the first-order term of the bias, without affecting the variance sensibly.

  • Indeed, it can be shown that the asymptotic variance of Nadaraya-Watson and local linear regression is the same, but the asymptotic bias is different.

  • To get an intuition of this, consider the following Taylor expansion for \mathbb{E}\{\hat{f}(x)\} around x, and for the local linear regression case: \begin{aligned} \mathbb{E}\{\hat{f}(x)\} &= \sum_{i=1}^n s_i(x)f(x_i) \\ & = f(x)\underbrace{\sum_{i=1}^ns_i(x)}_{=1} + f'(x) \underbrace{\sum_{i=1}^n(x_i - x)s_i(x)}_{=0} + \frac{f''(x)}{2}\sum_{i=1}^n(x_i - x)^2s_i(x) + \text{rest}. \end{aligned}

  • It can be shown with some algebra that the first-order term simplifies (=0) in the local linear regression case, but it doesn’t for the Nadaraya-Watson, therefore reducing the bias.

Choice of the bandwidth I

  • In practice, we need to choose the bandwidth by other means. A first solution is based on information criteria such as the C_p or the AIC/BIC.

  • However, as before, their usage requires a suitable notion of effective degrees of freedom.

Effective degrees of freedom for linear smoothers

Let \hat{f}(x) = \sum_{i=1}^ns_i(x)y_i be a linear smoother. Then the effective degrees of freedom are \text{df}_\text{sm} = \frac{1}{\sigma^2}\sum_{i=1}^n\text{cov}(Y_i, \hat{f}(x_i)) =\frac{1}{\sigma^2} \text{tr}\{\text{cov}(\bm{Y}, \bm{S}\bm{Y})\} = \frac{\sigma^2}{\sigma^2}\text{tr} (\bm{S}) = \text{tr} (\bm{S}).

  • Some authors proposed to use \text{tr}(\bm{S}\bm{S}^T) or \text{tr}(2\bm{S}-\bm{S}\bm{S}^T), but the connection with the optimism and the definition of effective degrees of freedom is less clear.

Choice of the bandwidth II

  • Cross-validation is another option for selecting the bandwidth h. For most linear smoothers there is a brilliant computational shortcut for the leave-one-out case.
  • Any reasonable linear smoother is constant preserving, that is \sum_{j=1}^ns_j(x) = 1 for all x. Moreover, for most linear smoothers the following property holds: \hat{y}_{-i} = \frac{1}{1 - s_i(x_i)}\sum_{j \neq i} s_j(x_i) y_j.
  • In other words, the leave-one-out predictions can be obtained by excluding the ith observation and re-normalizing the weights.

  • A linear smoother is called projective if it has the above property.

  • All the linear smoothers presented in this unit (Nadaraya-Watson, local linear regression, regression an smoothing splines) are projective (see Exercises).

Choice of the bandwidth III

Theorem (LOO-CV for linear smoothers)

Let \hat{y}_{-i} = \hat{f}_{-i}(x_i) be the leave-one-out predictions of a projective linear smoother and let \hat{\bm{y}} = \bm{S}\bm{y} be the predictions of the full model. Then: y_i - \hat{y}_{-i} = \frac{y_i - \hat{y}_i}{1 - [\bm{S}]_{ii}}, \qquad i=1,\dots,n. Therefore, the leave-one-out mean squared error is \widehat{\mathrm{Err}} = \frac{1}{n}\sum_{i=1}^n \left(\frac{y_i - \hat{y}_i}{1 - [\bm{S}]_{ii}}\right)^2.

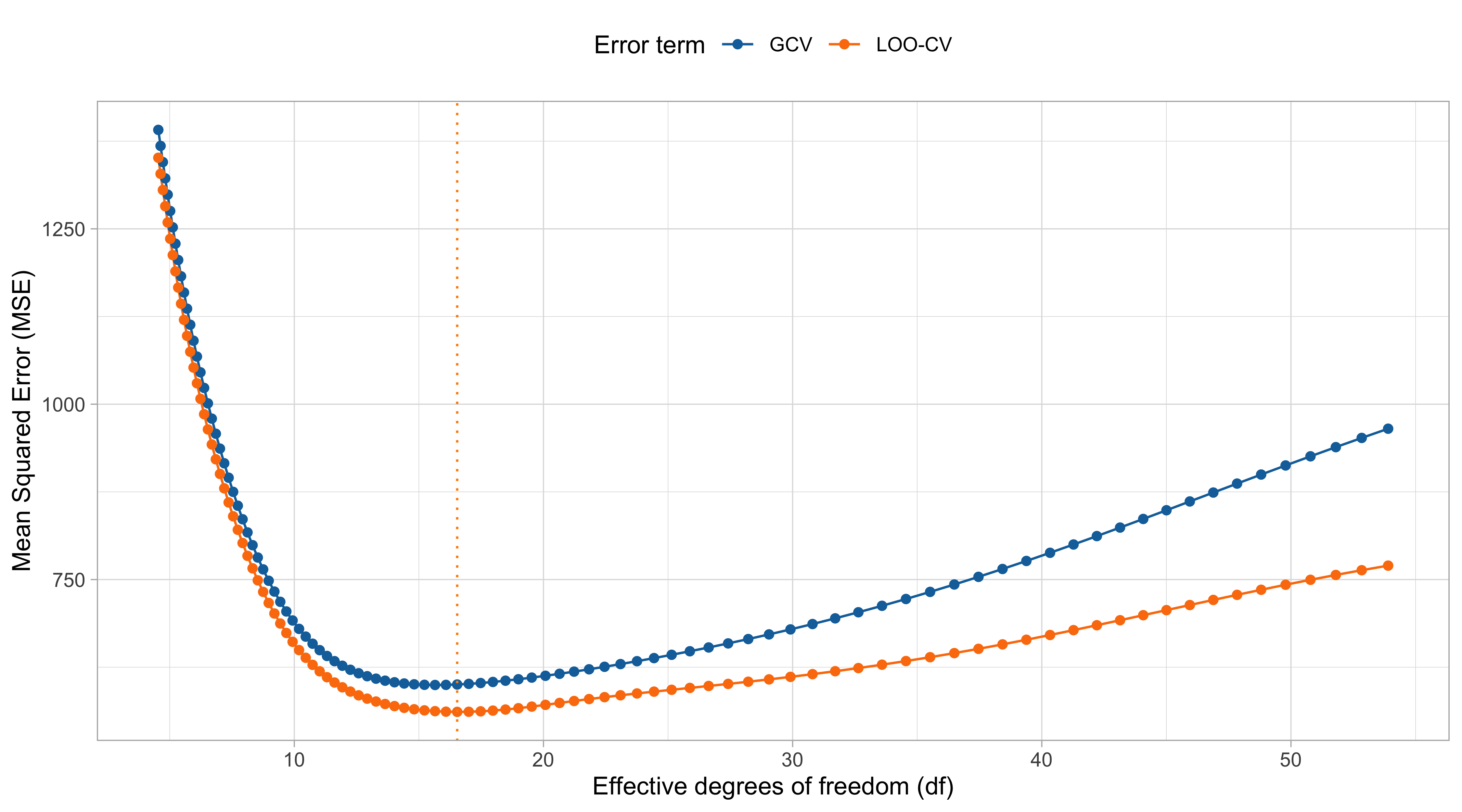

Choice of the bandwidth IV

Loess

  • Sometimes it is convenient to choose h adaptively, i.e. specifying a variable bandwidth h(x) that depends on the local density of the data.

  • Indeed, recall that the asymptotic variance depends on the sampling design of the x_is \text{var}\{\hat{f}(x)\} \approx \frac{\sigma^2}{n h} \frac{\alpha_w}{\textcolor{darkblue}{g(x)}}.

  • The loess (Cleveland, 1979) considers a fixed percentage of data points (assuming a bounded kernel is used), which automatically induces a variable bandwidth, as in KNN.
  • Moreover, the loess algorithm combines the variable bandwidth with some robust estimation ideas, so that outliers less influence the resulting estimate.
  • loess is a short-hand for “locally weighted estimated scatterplot smoothing”.

Local likelihoods

  • The concept of local regression and varying coefficients is extremely broad.

  • In principle, any parametric model can be made local as long as it accommodates weights.

  • Let us consider a logistic regression with a single predictor. For every value x we seek \hat{\beta}(x)= \arg\max_{(\beta_1, \beta_2)}\sum_{i=1}^nw_i(x)\left[y_i (\beta_1 + \beta_2 x_i) - \log\{1 + \exp(\beta_1 + \beta_2 x_i)\}\right], whose solution can be found using iteratively re-weighted least squares.

  • The computations and the theory are not as straightforward and limpid as in the regression case, but they do hold in an approximate sense.

  • Once again, the conceptual scheme is: (i) perform a quadratic approximation of the log-likelihood; (ii) proceed as in the regression case.

The bivariate case

  • Local linear regression can be applied when two or more covariates, say p, are used. Let us begin with two covariates so that y_i = f(x_{i1}, x_{i2}) + \epsilon_i.

  • To estimate f on a specific point \bm{x} = (x_1,x_2)^T, a natural extension of local linear regression takes the form \hat{\beta}(\bm{x}) = \arg\min_{(\beta_1, \beta_2, \beta_3)} \sum_{i=1}^n w_i(\bm{x})\left\{y_i - \beta_1 - \beta_2(x_{i1} - x_1) - \beta_3(x_{i2} - x_2) \right\}^2.

  • A common way of choosing the weights w_i(\bm{x}) is to set w_i(\bm{x}) = \frac{1}{h_1 h_2} w\left(\frac{x_{i1} - x_1}{h_1}\right)w\left(\frac{x_{i2} - x_2}{h_2}\right).

  • Clearly, this now involves the choice of two different smoothing parameters.

The bivariate case (h_1 = 0.5, h_2 = 150)

Pros and cons of kernel nonparametric regression

Pros

  • Local linear regression is a nonparametric estimator for unknown functions f(x) which makes very few assumptions on its form.

  • The procedure is simple and computationally efficient.

  • The smoothing parameter h can be easily handled, since \hat{f}(x) a linear smoother.

Cons

  • There is a price to pay for not making assumptions: estimation is less efficient in terms of mean squared error compared to parametric models (when they are correctly specified!).

  • This is a drawback of all nonparametric estimators, not just local linear regression.

Regression splines

Basis expansions

  • The idea of polynomial regression can be generalized and improved. The main idea is to augment or replace the input x with additional variables (basis expansion).

  • Let h_1(x), \dots, h_p(x) be pre-specified functions h_j(x) : \mathbb{R} \rightarrow \mathbb{R} that transform the original predictor x in some non-linear fashion. Then, we let f(x;\beta) = \sum_{j=1}^p h_j(x) \beta_j, where \beta = (\beta_1, \dots, \beta_p)^T is a vector of unknown coefficients.

  • Polynomials are a specific instance of basis expansion, in which h_1(x) = 1, \quad h_2(x) = x, \quad h_3(x) = x^2, \quad \dots \quad h_p(x) = x^{p-1}.

  • The main advantage of this approach is its linearity in the parameters, because it means that ordinary least squares can be used for the estimation of \beta.

Piecewise regression I

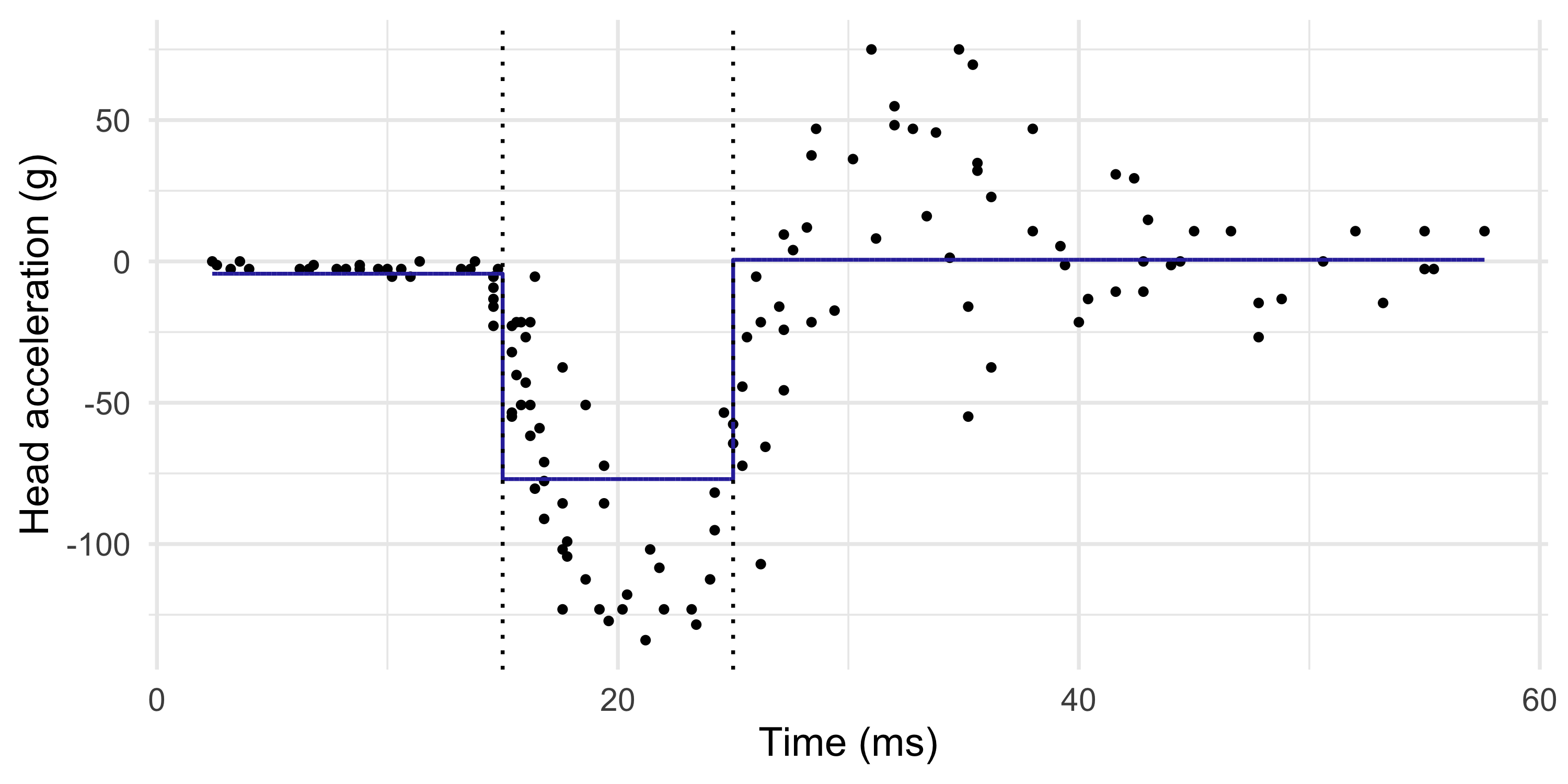

  • A piecewise constant regression model is another instance of basis expansions, in which we consider step functions, say p = 3 h_1(x) = I(x < \xi_1), \quad h_2(x) = I(\xi_1 \le x < \xi_2), \quad h_3(x) = I(x \ge \xi_2), where \xi = (\xi_1,\xi_2) are pre-specified cutpoints, called knots. Here \xi = (15, 25).

Piecewise regression II

  • The previous choice of knots is not working very well. The model is not flexible enough.
  • To improve the fit, we could consider piecewise polynomial functions rather than constant. For example, a piecewise quadratic function with p = 30 is \begin{aligned} h_1(x) &= I(x < \xi_1), && h_2(x) = x\:I(x < \xi_1), &&& h_3(x) = x^2\:I(x < \xi_1), \\ h_4(x) &= I(\xi_1 \le x <\xi_2), &&h_5(x) = x\:I(\xi_1 \le x < \xi_2), &&& h_6(x) = x^2\:I(\xi_1 \le x < \xi_2), \\ \vdots & &&\vdots &&&\vdots\\ h_{28}(x) &= I(x \ge \xi_9), &&h_{29}(x) = x\:I(x \ge \xi_9), &&& h_{30}(x) = x^2\:I(x \ge \xi_9).\\ \end{aligned}

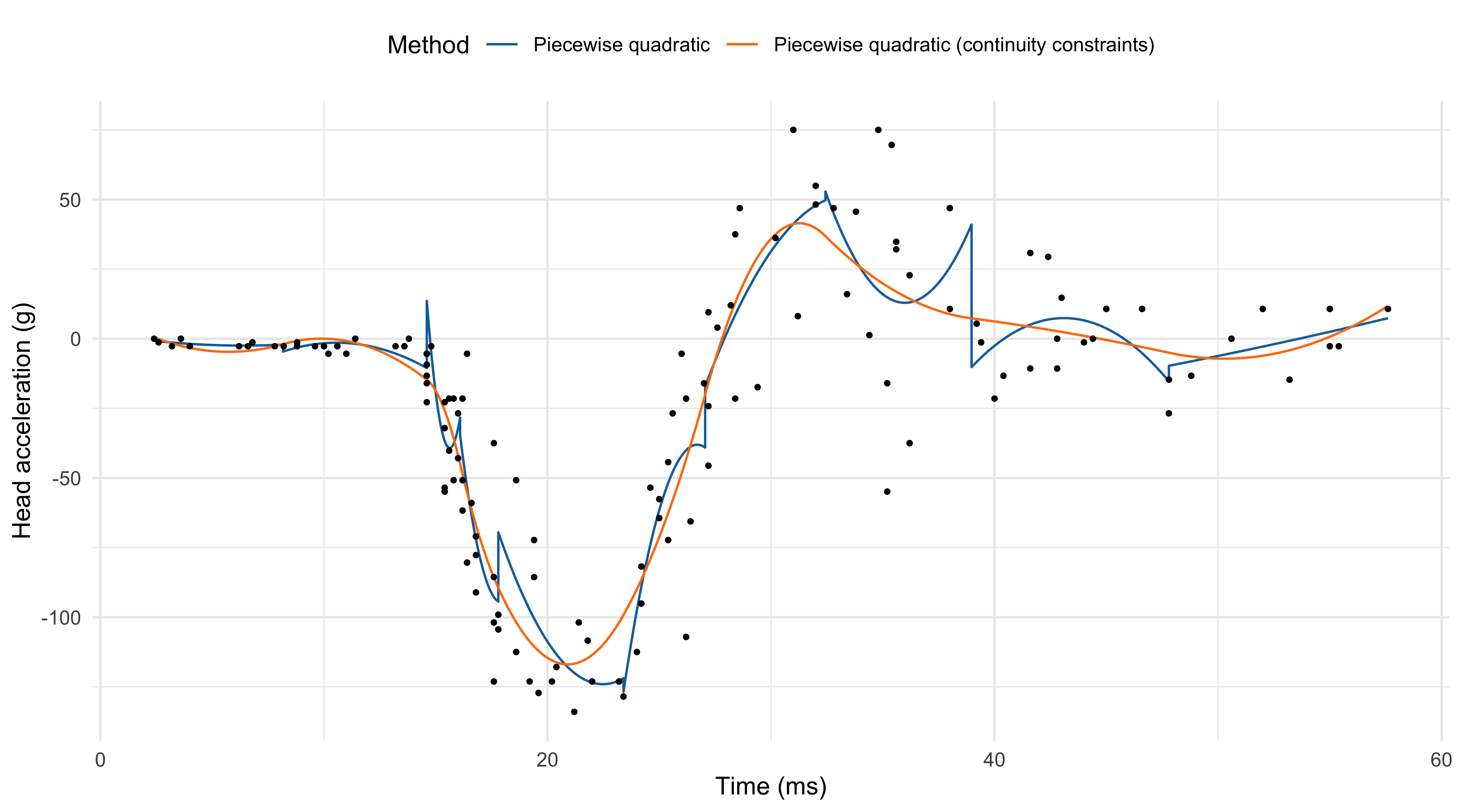

  • The piecewise quadratic f(x; \beta) = \sum_{j=1}^{30} h_j(x) \beta_j is not continuous e.g. at the knot \xi_1: \beta_1 + \beta_2 \xi_1 + \beta_3\xi_1^2 \neq \beta_4 + \beta_5 \xi_1 + \beta_6\xi_1^2. To achieve smoothness, it would be appealing to add some continuity constraints.

Piecewise polynomial functions

Splines I

  • Splines are piecewise polynomial functions with smoothness and continuity constraints.

  • Originally developed for ship-building to draw a smooth curve through a set of points.

  • The solution was to place metal weights (called knots) at the control points, and bend a thin metal or wooden beam (called a spline) through the weights.

Splines II

Definition (Spline of degree d)

Let \xi_1 < \cdots < \xi_k be a set of ordered points called knots belonging to the interval (a, b).

A spline f(x; \beta) : (a, b) \rightarrow \mathbb{R} of degree d is a piecewise polynomial function of degree d that has continuous derivatives up to order d - 1.

  • Cubic splines (d = 3) are the most common spline used in practice.

Definition (Cubic spline, d = 3)

Letting \xi_1 < \dots < \xi_k denote a set of ordered knots, a cubic spline f(x; \beta) is a piecewise cubic polynomial that has continuous first and second derivatives.

Splines III

  • Figure 5.2 of HTF (2011), in which are shown piecewise cubic polynomials with increasing regularity. The bottom-right plot (green line) depicts a cubic spline.

Splines IV

  • To recap: a spline of degree d is a piecewise polynomial f(x; \beta) of order d such that f(\xi_j^+) = f(\xi_j^-), \dots, f^{(d-1)}(\xi_j^+) = f^{(d-1)}(\xi_j^-), \qquad j=1,\dots,k, where \xi_j^+ and \xi_j^- denote the left and the right limits.

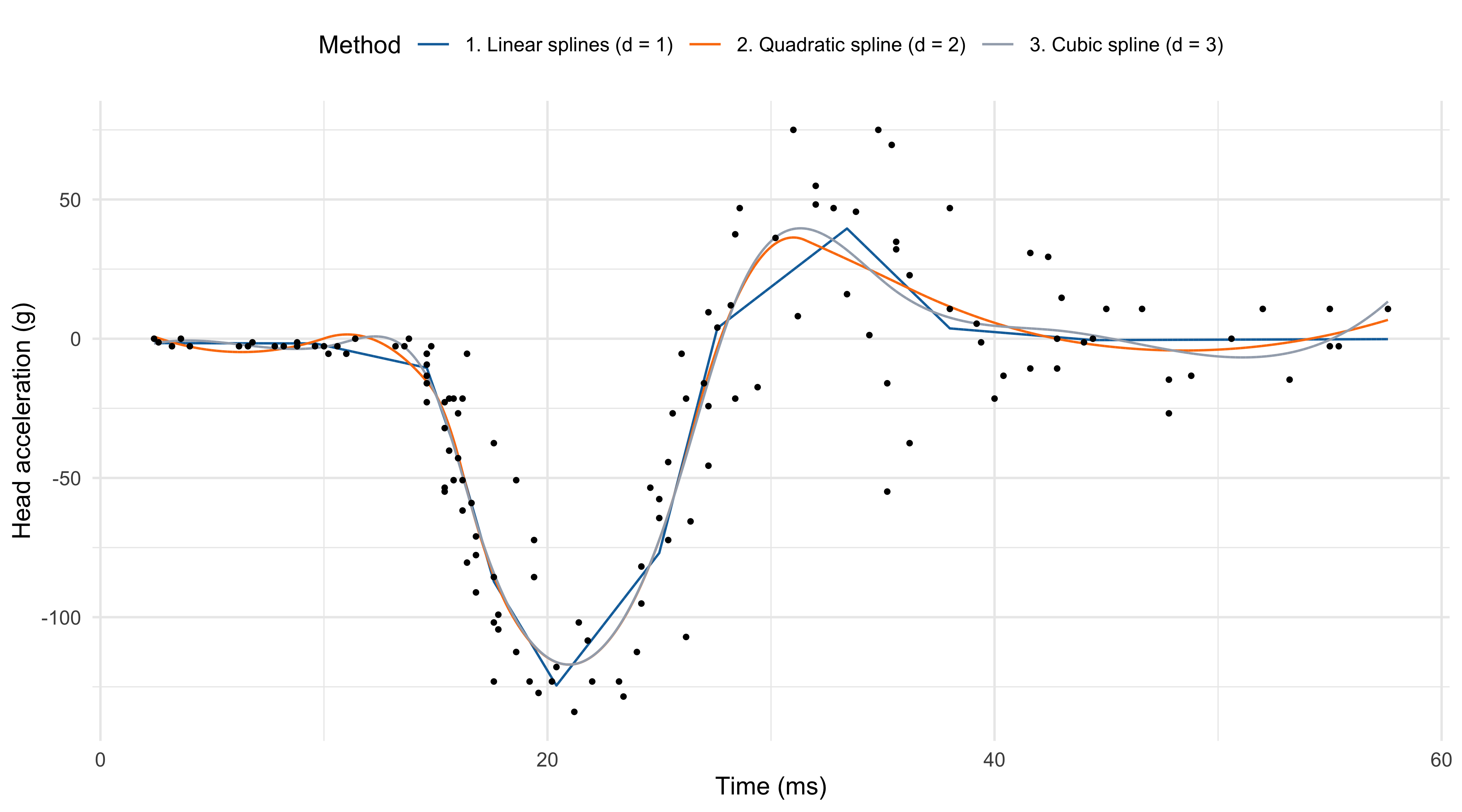

  • The degree d controls the amount of smoothness:
    • d = 0 is a piecewise constant function;
    • d = 1 is a polygonal line (continuous, but with discontinuous first derivative).
  • Higher values of d increase the smoothness, but the spline behaves more and more like a global polynomial. In practice, one rarely goes beyond d = 3.
  • The current definition of spline is quite abstract and non-operative. How do we fit a regression model whose f(x; \beta) is a spline?

Truncated power basis

Theorem (Truncated power basis)

Let \xi_1 < \cdots < \xi_k be a set of ordered points called knots belonging to (a, b). Let h_j(x) = x^{j-1}, \qquad j=1,\dots,d + 1, and h_j(x) = (x - \xi_j)_+^d, \qquad j = 2 + d, \dots, k + d + 1. Then, the functions \{h_1,\dots,h_{k+d + 1}\} form a basis for the set of splines of degree d at these knots, called the truncated power basis.

Thus, any dth degree spline f(x, \beta) with these knots can be written as a basis expansion f(x; \beta) = \sum_{j=1}^{k+d+1}h_j(x) \beta_j.

Regression splines

  • The truncated power basis is a constructive way of defining splines. Moreover, it clarifies that splines are linear in the parameters.
  • Let \bm{B} be a n \times p design matrix whose elements are obtained from the basis functions: [\bm{B}]_{ij} = h_j(x_i), \qquad j=1,\dots,p; \quad i=1,\dots,n.

  • Let f(x;\beta) = \sum_{j=1}^p h_j(x)\beta_j. Then, the ordinary least squares for \beta are obtained as usual: \hat{\beta} = (\bm{B}^T\bm{B})^{-1}\bm{B}^T\bm{y} \implies \hat{f}(x) = \sum_{j=1}^p h_j(x)\hat{\beta}_j = \sum_{i=1}^n s_i(x) y_i.

  • Hence, regression splines are another instance of linear smoother (actually, of linear model). The smoothing matrix in this case is \bm{S} = \bm{B} (\bm{B}^T\bm{B})^{-1}\bm{B}^T, so that \text{tr}(\bm{S}) = p.

  • Regression splines are generating “new” covariates. Hence, their extension to GLMs, particularly to logistic regression, is straightforward.

On the choice of the knots

  • The knots’ placement and their number k are complexity parameters, which should be chosen via cross-validation or other tools.
  • In principle, the position of the knots could be manually selected to get the best fit. However, this results in an incredible optimization problem.
  • In practice, the knots are typically selected in two ways:
    1. Knots are equally spaced on a grid of values ranging from \min(x) to \max(x);
    2. Knots are placed on quantiles (bs default), to get variable bandwidth.
  • The degree d influences the number of knots we can place for a fixed number of degrees of freedom p. For example:
    • In linear splines (d = 1), with p = 12 we can place k = p - d - 1 = 10 knots;
    • In quadratic splines (d = 2), with p = 12 we can place k = 9 knots;
    • In cubic splines (d = 3), with p = 12 we can place k = 8 knots.

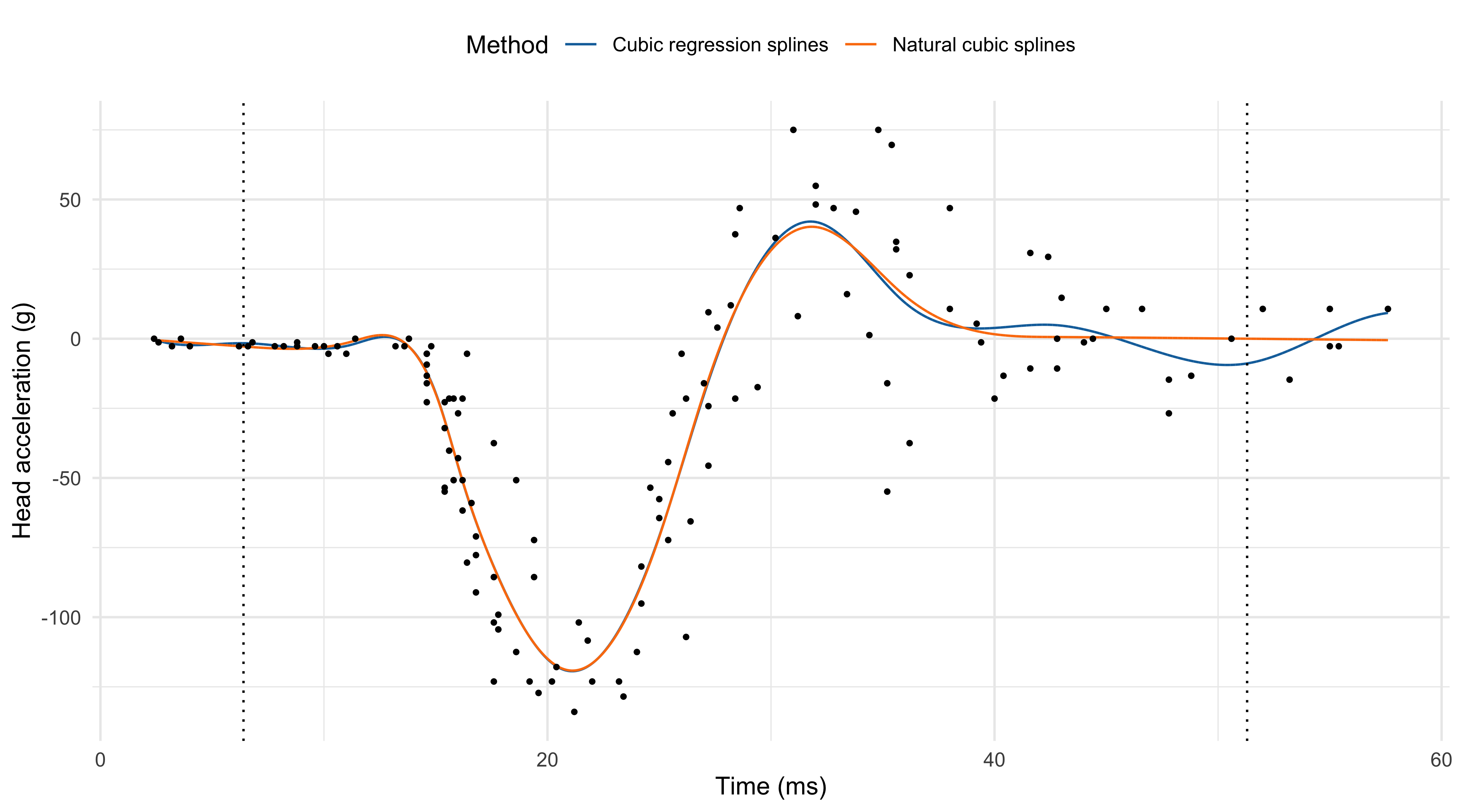

Regression splines (p = 12)

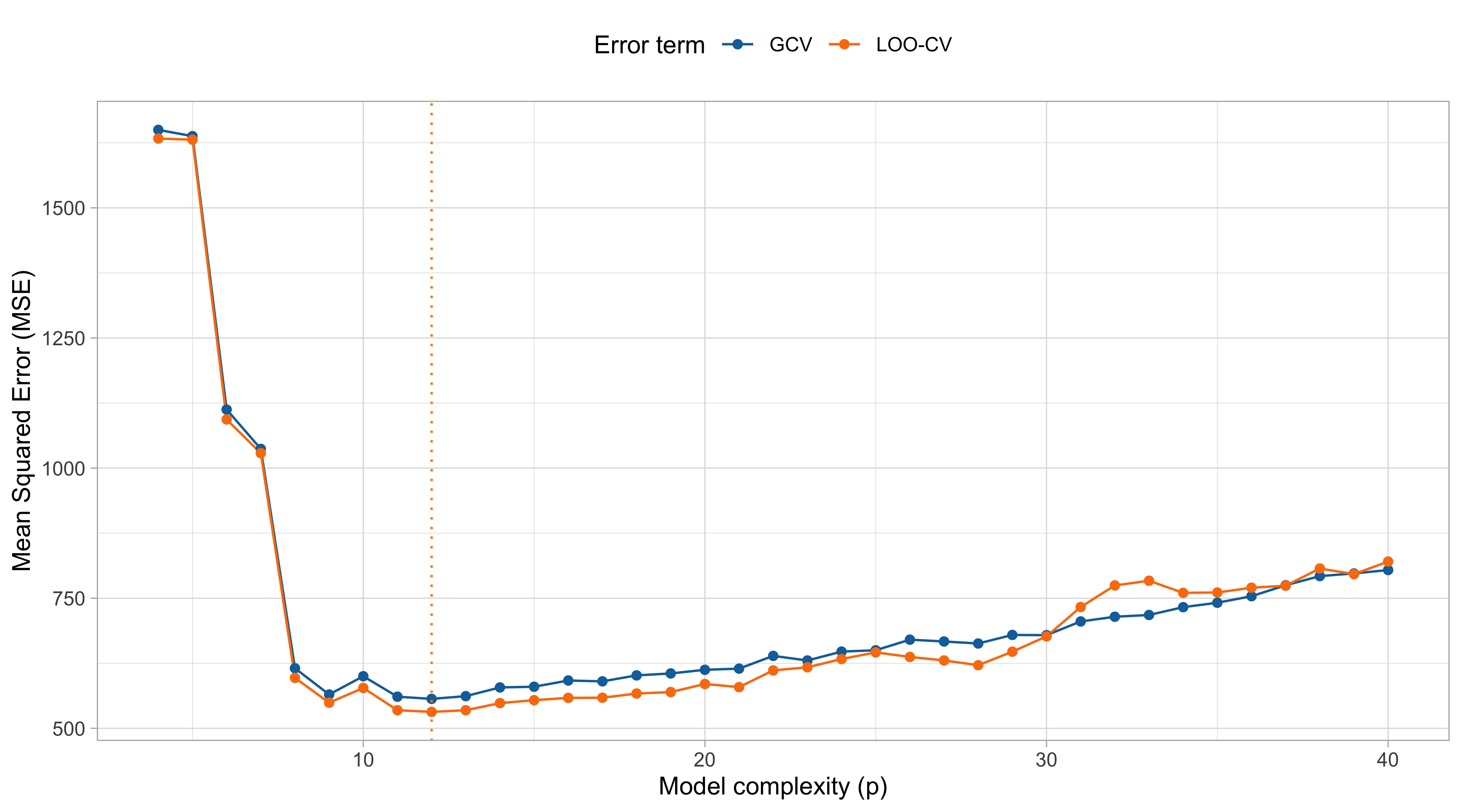

On the choice of p (cubic splines)

Natural cubic splines I

  • Polynomials fit beyond the boundary knots \xi_1 and \xi_k tends to be erratic. Prediction and extrapolations can be dangerous.

Definition (Natural cubic spline)

A natural cubic spline f(x; \beta) is a cubic spline which is linear beyond the boundary knots \xi_1 and \xi_k, which means f''(\xi_1) = f''(\xi_k) = 0.

  • Natural cubic splines enforce 4 additional constraints; these degrees of freedom can be used more efficiently to place more internal knots.

Proposition

A set of n \ge 2 distinct points (x_i, y_i) can be interpolated using a natural cubic spline with the data points x_1 < \dots < x_n as knots. The interpolating natural cubic spline is unique.

Natural cubic splines II

  • In practice, the truncated power basis can be easily modified, to get the following basis \begin{aligned} &N_1(x) = 1, \quad N_2(x) = x, \\ &N_{j + 2}(x) = \frac{(x - \xi_j)^3_+ - (x - \xi_k)^3_+}{\xi_k - \xi_j} - \frac{(x - \xi_{k-1})^3_+ - (x - \xi_k)^3_+}{\xi_k - \xi_{k-1}}, \quad j = 1,\dots,k - 2. \end{aligned}
  • This formula is a scaled version of the truncated power basis for any x \le \xi_{k-1}, namely N_{j+2}(x) = \frac{(x - \xi_j)^3_+}{\xi_k - \xi_j}, \qquad x \le \xi_{k-1}, \quad j = 1,\dots,k - 2. The formula becomes more complicated when x > \xi_{k-1} and the constraint is enforced.
  • Hence, in natural cubic splines k = p and the function can be express as follows f(x; \beta) = \sum_{j=1}^k N_j(x)\beta_j.

Natural cubic splines (k = 12)

Computations: B-splines I

  • Despite their conceptual simplicity, the truncated power basis and its “natural” modification are not used in practice, due to ill-conditioning.

  • Indeed, the condition number of \bm{B}^T\bm{B} using a truncated power basis is very large, leading to numerical inaccuracies.

  • For this reason, more computationally convenient bases are preferred. This means we will consider an equivalent set of functions \mathcal{B}_1(x),\dots,\mathcal{B}_p(x) such that \mathcal{B}_j(x) = \sum_{\ell=1}^p\gamma_{\ell j} h_\ell(x), \qquad j=1,\dots,p, for some set of weights \gamma_{\ell j} that makes this transformation one-to-one.

  • Since we are performing a linear transformation, if ordinary least squares are used, this does not change the fit.

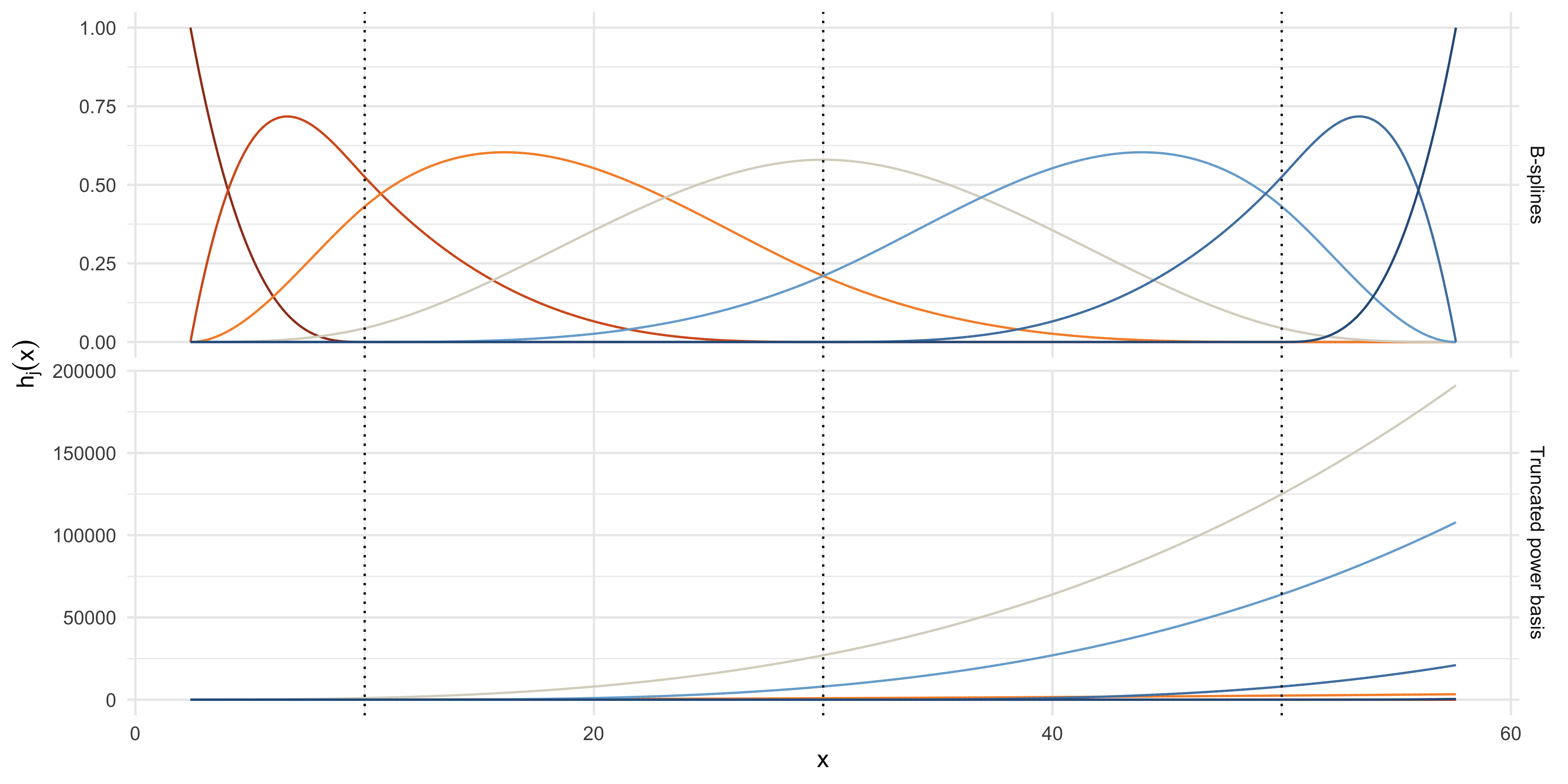

  • A particularly convenient basis are B-splines, which are local and numerically stable. They admit a direct construction; i.e., we do not need to compute the coefficients \gamma_{\ell j}.

Computations: B-splines II

☠️ - Details of B-splines I

  • Define \xi = (\xi_1,\dots,\xi_k) and consider an augmented sequence of ordered knots \tau = (\tau_1,\dots,\tau_{k + 2d + 2}) = (\underbrace{\xi_{-d},\dots,\xi_0}_{\text{auxiliary knots}}, \: \xi,\: \underbrace{\xi_{k+1},\dots,\xi_{k + d + 1}}_{\text{auxiliary knots}}). The most common choice is \xi_{-d}= \dots = \xi_0 = a and \xi_{k+1} = \dots = \xi_{k + d+ 1} = b.
  • Step 1. For j = 1,\dots, k + 2d + 1, obtain the B-spline of degree m = 0 as follows: \mathcal{B}_{j,0}(x) = I_{[\tau_j, \tau_{j+1})}(x), where by convention we say that \mathcal{B}_{j,0}(x) = 0 if the knots are equal \tau_j = \tau_{j+1}.
  • Step 2 (recursion). The B-spline of degree m \le d are obtained recursively, so that \mathcal{B}_{j, m}(x) = \frac{x - \tau_j}{\tau_{j + m} - \tau_j}\mathcal{B}_{j, m-1}(x) + \frac{\tau_{j + m + 1} - x}{\tau_{j + m + 1} - \tau_{j +1}}\mathcal{B}_{j + 1, m-1}(x), for j=1,\dots,k + 2d + 1 - m and for m=1,\dots,d.

☠️ - Details of B-splines II

  • The intercept term is implicitly included in a B-spline basis, in fact \sum_{j=1}^{k + d + 1}\mathcal{B}_{j, d}(x) = 1, \qquad x \in (a, b).

  • B-splines \tau have local support, which means that for j=1,\dots,k + 2d + 1 - m we have \begin{aligned} &\mathcal{B}_{j, d}(x) = 0, \qquad x \not\in (\tau_j, \tau_{j+d+1}), \\ &\mathcal{B}_{j, d}(x) > 0, \qquad x \in (\tau_j, \tau_{j+d +1}). \end{aligned} This implies that the support of cubic B-splines is at most 4 knots.

  • The presence of structural zeros implies that, when computing ordinary least squares, extremely efficient Cholesky factorization for banded matrices can be exploited.

  • The B-spline basis can be modified to produce a natural cubic spline, by numerically enforcing the linearity constraint. This is implemented in the ns R function.

Pros and cons of regression splines

Pros

  • Regression splines is a semi-parametric estimator for unknown functions f(x).

  • They are essentially a linear model with smart covariates that account for non-linearity. Hence, the procedure is simple and computationally efficient (thanks to B-splines).

  • The smoothing parameter k is discrete and can be easily handled, being directly associated with the number of degrees of freedom.

  • They are trivial to extend to generalized linear models.

Cons

  • Knot placement based on quantiles or other automatic choices could be inefficient.

  • Manual placement of the knots is out of question because it is an almost impossible optimization problem.

Smoothing splines

Smoothing splines I

  • Let us consider the following penalized least squares criterion \mathscr{L}(f; \lambda) = \sum_{i=1}^n\{y_i - f(x_i)\}^2 + \lambda \underbrace{\int_a^b\{f''(t)\}^2\mathrm{d}t}_{\text{roughness penalty}}, where (a, b) is an interval containing the data points and \lambda > 0 is a smoothing parameter.

  • We consider as our estimator the minimizer of the above loss, that is \hat{f}(x) = \arg\min_{f \in \mathcal{F}} \mathscr{L}(f; \lambda), where \mathcal{F} is a sufficiently regular functional space (Sobolev space).

  • The roughness penalty quantifies the “wiggliness” of the curve. There are two extremes:

    • When \lambda = 0 there is no penalization: any solution interpolates the points (x_i, y_i);
    • When \lambda = \infty then necessarily f''(x) = 0, i.e. the solution is a linear model.

Smoothing splines II

Theorem (Green and Silverman, 1994)

Let n_0 \le n be the distinct points among x_1,\dots,x_n, with x_i \in (a,b). Suppose n_0 \ge 3.

Then, for any \lambda > 0 the minimizer of \mathscr{L}(f; \lambda) is unique and is a natural cubic spline with n_0 knots at the distinct points.

  • The Green and Silverman theorem is remarkably elegant and powerful.

  • Since the solution is a natural cubic spline, we can write it as follows: f(x; \beta) = \sum_{j=1}^{n_0} N_j(x)\beta_j, whose coefficients \beta still needs to be determined.

  • In smoothing splines, we do not need to choose the knots: every distinct observation is a knot. The model is not overparametrized because the complexity is controlled by \lambda.

Smoothing splines III

  • Since f(x;\beta) is a natural cubic spline, the penalized least squares criterion becomes \mathscr{L}(\beta; \lambda) = \sum_{i=1}^n\{y_i - f(x_i; \beta)\}^2 + \lambda \beta^T\bm{\Omega}\beta, \qquad [\bm{\Omega}]_{jk} = \int_a^bN''_j(t)N''_k(t)\mathrm{d}t, whose minimization over \beta is much easier, because it becomes finite-dimensional.
  • The minimization of \mathscr{L}(\beta; \lambda) is reminiscent of ridge regression, and in fact the solution is \hat{\beta} = (\bm{N}^T\bm{N} + \lambda \bm{\Omega})^{-1}\bm{N}^T\bm{y}, \qquad [\bm{N}]_{ij} = N_j(x_i). which leads to a linear smoother, with \bm{S} = \bm{N}(\bm{N}^T\bm{N} + \lambda \bm{\Omega})^{-1}\bm{N}^T.

  • The above formula is not used in practice directly. The smooth.spline R implementation relies on B-splines to make computations fast and stable.

  • Alternatively, the so-called Reinsch (1967) algorithm has computational complexity \sim n.

Smoothing splines (\text{df}_\text{sm} = 12.26)

The equivalent kernel

  • As already mentioned, smoothing splines are linear smoothers, which means that \hat{f}(x) = \sum_{i=1}^ns_i(x) y_i.
  • Provided x is not too near the edge of the interval (a, b), and \lambda is not too big or too small, we obtain the following approximation for the equivalent kernel s_i(x) \approx \frac{1}{g(x)}\frac{1}{h(x)}w\left(\frac{x - x_i}{h(x)}\right).
  • The kernel function w(t), which is not a density, and the local bandwidth equal to w(t) = \frac{1}{2}\exp\left(-\frac{|t|}{\sqrt{2}}\right)\sin\left(\frac{|t|}{\sqrt{2}} + \frac{\pi}{4}\right), \qquad h(x) = \lambda^{1/4} \{\textcolor{red}{n} \textcolor{darkblue}{g(x)}\}^{-1/4}.
  • Smoothing splines automatically incorporate a local bandwidth decreasing with n.

Multi-dimensional splines

  • There are several ways of extending regression and smoothing splines to the multivariate case. An example are tensor splines, based on the cross-multiplication of basis functions.
  • Another instance are the thin-plate splines, in which the 2d roughness penalty becomes \int_{\mathbb{R}^2}\left\{\left(\frac{\partial^2 f(x_1,x_2)}{\partial x_1^2}\right)^2 + 2\left(\frac{\partial^2 f(x_1,x_2)}{\partial x_1 \partial x_2}\right)^2 + \left(\frac{\partial^2 f(x_1,x_2)}{\partial x_2^2}\right)^2\right\}\mathrm{d}x_1\mathrm{d}x_2. The minimization of the above loss has a simple finite-dimensional solution.
  • We do not discuss any further multi-dimensional splines because, when the dimension is large, they are affected by the so-called curse of dimensionality; see Unit E.

  • Nonetheless, the 2d case is extremely useful in spatial statistics, in which x_1 and x_2 represent longitude and latitude.

  • There will be a strong connection between the smoothers we have seen in this unit and the so-called kriging equations.

Further properties of smoothing splines

  • Extension of smoothing splines to generalized linear models is possible by adding the “roughness” penalty to the log-likelihood function.

  • Smoothing splines have a Bayesian interpretation, being an instance of Gaussian process.

  • From a theoretical perspective, there exists (Chapter 5.8 of HTF, 2011) an elegant theory based on reproducing kernel Hilbert spaces, that unifies:

    • Gaussian processes;
    • Smoothing splines;
    • Support vector machine.

Pro-tip (a joke?)

“If you want to derive an estimator that performs well in practice, define a Bayesian model, derive the posterior mean, call this a frequentist estimator, and hide all evidence you ever considered a Bayesian approach.” Credits to Eric B. Laber

Pros and cons of smoothing splines

Pros

  • Smoothing splines is a nonparametric estimator for unknown functions f(x).

  • They are a linear smoother with variable bandwidth.

  • Compared to regression splines, they do not require the choice of the knots.

  • Simple and efficient algorithms for computing 1d smoothing splines exist, such as smooth.spline available in R.

Cons

  • Efficient implementations require a profound knowledge of linear algebra, B-spline basis, etc.

  • Hence, the “manual” incorporation (i.e., the coding) of smoothing splines into bigger, non-standard models is not straightforward.

References

References

  • Main references
  • Kernel methods
    • Chapter 5 of Wand, M. P., and Jones, M.C. (1995). Kernel Smoothing. Chapman and Hall.
    • Chapters 2, 3, and 4 of Fan, J., and Gijbels, I. (1996). Local Polynomial Modelling and Its Applications. Chapman and Hall.
  • Smoothing splines
    • Green, P. J., and Silverman, B. W. (1994). Nonparametric Regression and Generalized Linear Models: A Roughness Penalty Approach. Springer.

Home page
